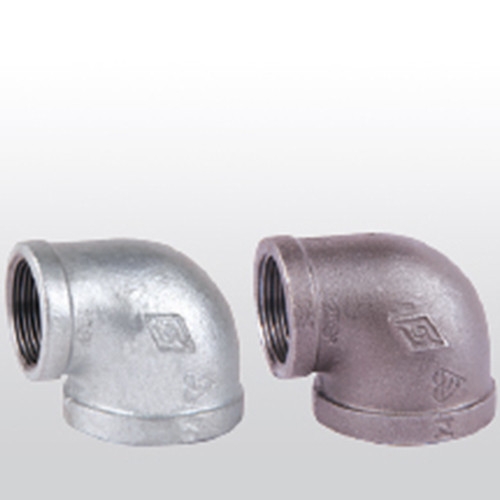

90กใ Elbow, Banded, Reducing
90กใ Elbow, Banded, Reducing Malleable Iron Fittings - Steam & G.I. BSPT Thread Malaysia, Selangor, Kuala Lumpur (KL), Puchong Supplier, Suppliers, Supply, Supplies | Chuan Foong Hardware Sdn Bhd

DESCRIPTION

International Standards:
British Standard ISO 5922 / ISO 49 / ISO 7 / 1
American Standard ANSI / ASME A197-79 / B 16.3-3.85 / B1.20.1-83
DIN Standard DIN 2950 / 1692 / 2999

Size Inch 4×11/4 4×11/2 4×2 4×2 1/2 4×3
mm 100×32  100×40 100×50 100×65 100×80
Dim.(mm) A 60 62 68 77 82
B 85 85 86 89 90
Size Inch 3/4×1/2 1×1/4 1×3/8 1×1/2 1×3/4
mm 20×15 25×8 25×10 25×15 25×20
Dim. (mm) A 30 27 30 32 35
B 31 31 32 34 36
